Software stack and autonomy

Autonomy decides 100 points of the 2027 score, and it is the only subsystem that can lose a task for a reason invisible in the hardware. Two route targets are exact coordinates inside 1 m, the hill has no guaranteed approach, and one target sits out of radio line of sight by design. The stack that wins is unremarkable in framework terms and precise in three places: the error budget at the stop, the terrain model on the hill, and the state machine around the astronaut.

What the subsystem must do

The Autonomy Mission is 40 minutes and 100 points, and software touches all of it S-URC27-RULES §1.e.i. Two route targets carry 25 points each, must be reached within 1 m of exact coordinates in either order, and require an arrival indication the judge can see S-URC27-RULES S-URC27-QA S-URC27-QA §1.e.xvii AUQ16 AUQ18. The astronaut sub-mission carries the other 50: a drive to a suited team-mate, five commands in binding order, a 15-point Follow!, a 5-point Stay!, a 10-point Fetch!, a 5-point Come! and a 5-point Give! S-URC27-RULES S-URC27-RULES S-URC27-QA §1.e.iv §1.e.x AUQ13. One target sits behind the hill and out of radio line of sight, so the stack must keep deciding with no link at all S-URC27-RULES §1.e.xvi.

Leaving autonomy is priced. An operator stop costs 20 % of that task, teleoperation back to a previously visited point costs 50 % capped at 50 % per task, and a physical intervention costs 20 % of the mission with the clock still running S-URC27-RULES S-URC27-RULES S-URC27-RULES §1.e.xi §1.e.xviii §3.e.viii. The rover’s own autonomous stop is free and the command may be re-given S-URC27-RULES §1.e.xi, which turns self-recovery from an error path into a feature worth engineering.

One requirement is not written as one. Judges score hands-off behaviour by observation rather than by reading code S-URC27-QA AUQ21, so the mode topic, the rear LED and the operator posture belong to the software contract S-URC27-RULES §1.e.ii.

The numbers that size the design

The budget, ladder and latency rows are engineering estimates from stated parameters. The rule, framework and configuration rows are sourced.

Design space, in one table

The 1 m stop is an error budget

The tolerance is a total error, so every contribution has to be named before it can be reduced. The allocation below is engineering judgement rather than measurement, and it is the calculation a first build should reproduce and then improve.

Three consequences follow, and each one changes a design decision.

• ArUco is a terminal aid, not the navigation source. The 15 cm black tag is about 25 px wide at 10 m through a 1080p camera with a 60° field of view, which is 4.2 px per module. GNSS closes the route; the tag confirms the last few metres.
• Heading dominates once the rover is 10 m or more from the last fix. One degree of yaw error is 0.05 m at 3 m and 0.35 m at 20 m, which is why dual-antenna RTK yaw with a magnetometer as a third check is worth its mass.
• The last metre is a control problem. Inside 3 m the terminal approach is made at or below 0.3 m/s, the stop is commanded at 0.6 of the tolerance, and a 3 s hold gives the judge time to see the green LED. UMD’s 1.0 m goal tolerance only works because the controller closes that last metre.

The hill turns a straight line into a contour

A slope limit on a 1 m elevation model is what makes route finding a real task. At the 15° passable-slope cap that UMD Loop uses, the direct 200 m line to a hilltop target becomes a 400–600 m contour-following route, so the planner has to be cost-aware and the time budget has to absorb the detour. Nothing in the rules guarantees a shorter path: not all approach directions will be navigable S-URC27-RULES §1.e.xv.

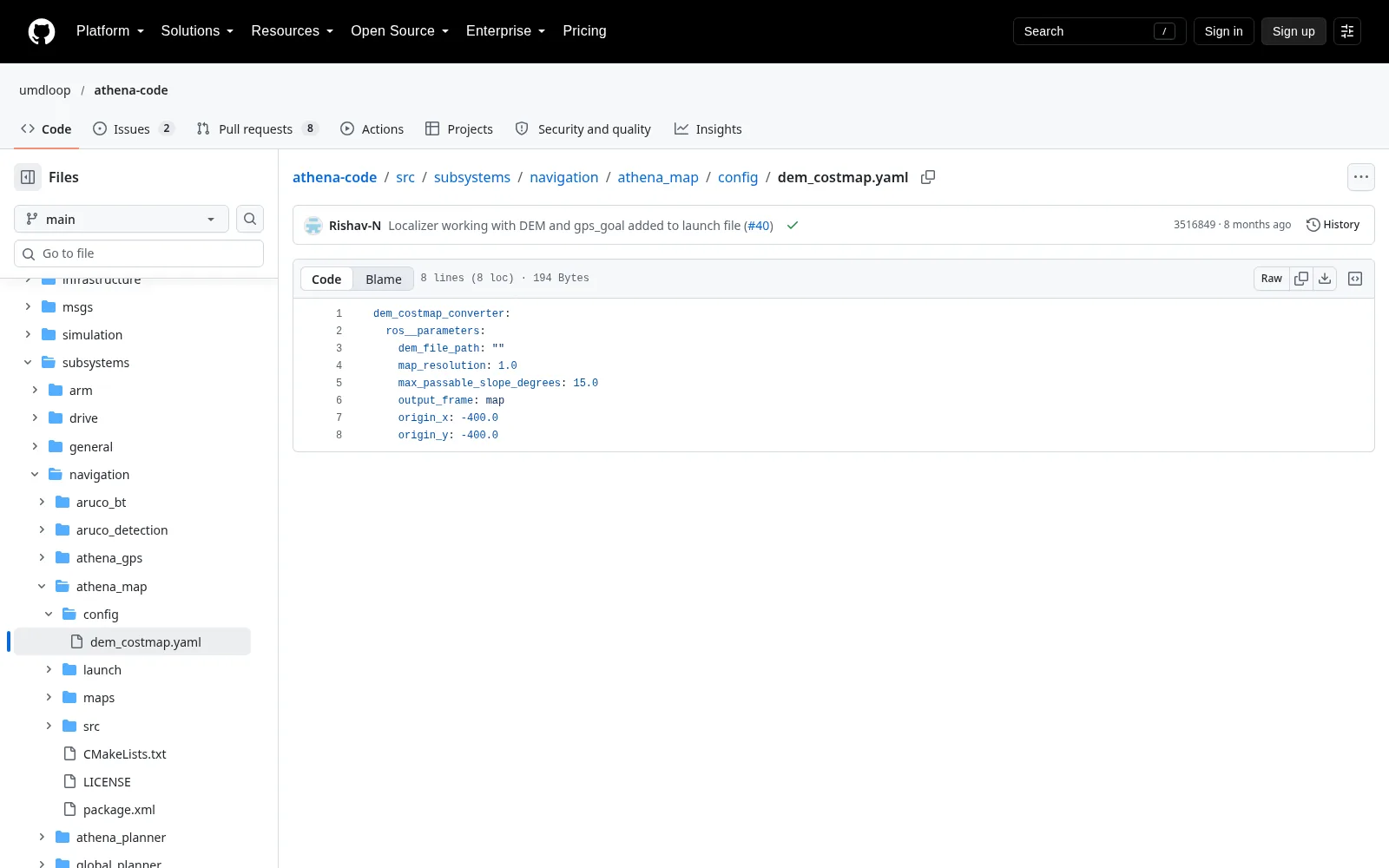

The dependency most teams take on is the wrong one. URC’s own elevation model is described as an attempt with an unconfirmed timeline S-URC27-QA AUQ20, while USGS 3DEP serves 1 m coverage that has been verified at the site. Building against the public model costs an afternoon of raster work and removes a schedule risk. The only public implementation in the field is eight lines long, and those eight lines are worth copying.

Four planning details separate a costmap that works from one that refuses the hill. The unknown space must be traversable, or a mostly unmapped start area makes the only route look lethal. Inflation must stay below about 0.4 of the narrowest gap the rover intends to drive, because an inflated costmap seals a gap long before the rover is too wide for it; UMD runs 1.5 with a cost-scaling factor of 3.0 and Monash uses 1.28 at twice the robot radius. A progress checker converts a six-minute oscillation into a bounded recovery, and UMD sets 0.5 m in 10 s. A stay-out zone drawn while the rover is stopped is legal S-URC27-RULES §1.e.iii and is the only mechanism that turns “do not go there” into a rule the planner obeys.

Localisation lives in one file of constants

Most localisation failures are not filter failures. They are a coordinate frame, a lever arm or a yaw source that nobody wrote down. Missouri S&T converts incoming WGS-84 coordinates to UTM and subtracts a measured antenna offset S-MST-DOCS-NAVBOARD; one file of constants and a ten-minute field calibration are the whole defence.

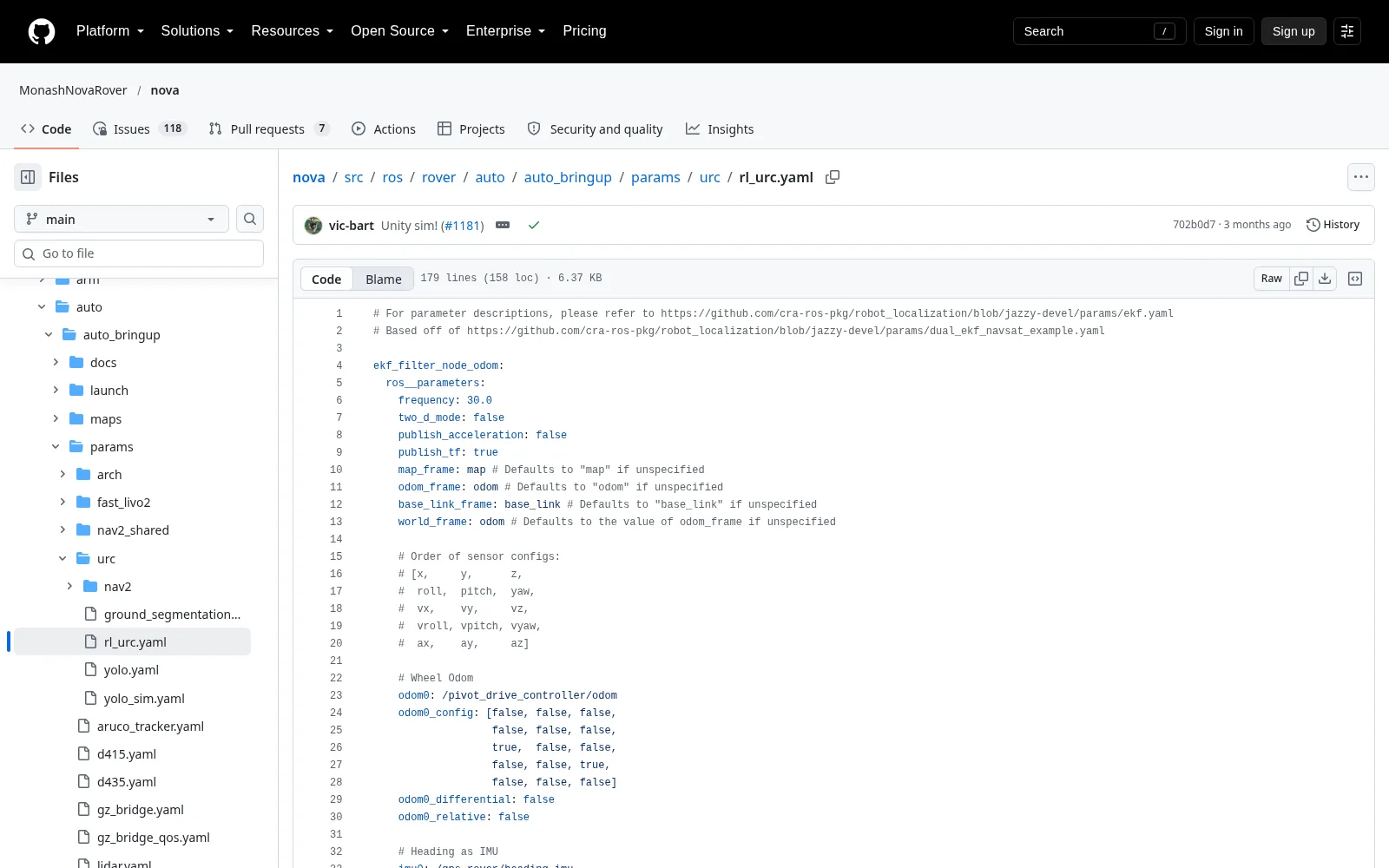

The recommended structure is a dual extended Kalman filter, one for the smooth odometry frame and one for the jump-tolerant map frame, fed by wheel odometry, IMU, GNSS and a magnetometer. Tuning is the work: days of log replay are normal, and a monitor on the innovation and covariance makes divergence visible rather than discovered at the target. Heading noise from a pair of antennas scales as the position noise divided by their separation, so 1 cm over 0.5 m is about 1.15° and 1 cm over 1 m is about 0.57°.

The astronaut state machine

The astronaut sub-mission has a fixed command order S-URC27-QA AUQ13 and an unfixed number of retries, because the rover may self-abort for free and re-accept the command S-URC27-RULES §1.e.xi. That combination is exactly what a behaviour tree or a disciplined state machine expresses and a chain of conditionals does not. Five properties are worth copying outright.

1. Every free recovery is a state. A self-stop and a safe hold exist so that a fault costs time rather than points. A team that turns a recoverable fault into an operator abort donates 20 % of that task.
2. Link loss is two policies, not one. During the astronaut sub-mission the rover holds, because a human is nearby. During route finding it keeps driving and queues telemetry, because the second target is out of radio line of sight by design. A stop-on-link-loss handler is a 25-point defect S-URC27-RULES §1.e.xvi.
3. The armed state is a listening state. The rover waits visibly parked with the LED red while it scans, so the operators must already be hands-off before the astronaut commands.
4. Fetch is a camera and arm sweep from where Follow ended. The pick lies in the immediate area S-URC27-QA AUQ8, so driving with an arm extended is an avoidable tip-over and self-collision risk.
5. Come! closes the last 20 m on the person detector. The rules guarantee the astronaut is in the field of view at that moment S-URC27-QA AUQ7, which makes the geometry a free safety margin.

Interfaces that bite

• Compute and sensors. Camera streams at 720p30 or better with valid camera intrinsics, RTK fixed position with dual-antenna heading, and an IMU at 100 Hz or more. Uncalibrated intrinsics or unsynchronised odometry halve the value of everything above them.
• Communications. A round-trip budget of 80 ms and 4 Mbit/s for one 1080p stream, and route finding that survives a total outage. The camera count is frozen with the communications design before the operator interface is written, because video bandwidth is the binding constraint.
• Power. A brownout during an arm stall looks exactly like a software crash. The E-stop also removes power from the log storage, so mode transitions must be flushed to non-volatile storage and logged at the station as well S-URC27-RULES §2.a.v.
• Arm. A 100–200 Hz joint loop and a Cartesian mode at or below 0.1 m/s for the grasp, with inverse kinematics and joint limits shared between the arm and the autonomy code.
• Operator station. Hands-off is a procedure as much as a setting: a physical autonomy key kept out of reach, one E-stop owner, and only the drone pilot holding a live controller S-URC27-QA AUQ25.

Failure modes

Shortlist for a first build

Open problems

• What slope can the rover actually climb? URC publishes no inclinations S-URC27-QA AUQ17, and 15° is a choice with no cited basis. An instrumented wheel-slip test at 10, 15, 20 and 25° sets the costmap cap from measurement.
• Does dual-antenna heading hold under the rover’s own multipath? A 30-minute static test and a 200 m run against a surveyed bearing give the heading error; the target is 1° at one standard deviation with no drift after a fix loss.
• Is the 1 m stop repeatable? Thirty runs around a surveyed point give the hit rate. The pass criterion is 90 % inside 1.0 m and 100 % inside 1.5 m, because 25 points turn on it.
• Does the audio channel survive motor noise and wind? Thirty utterances at three distances with the drive motors at mission speed settle a false-accept rate of one per ten minutes or better.
• How long does an autonomous return actually take? The 20 % penalty is cheap only if a return from 300 m plus a re-attempt fits inside the 40 minutes with five minutes to spare.
• Does the hands-off procedure survive a near-collision? Ten injected near misses with an instructed operator measure whether reflex beats procedure. Zero control touches is the only acceptable result.

Further reading

• UMD Loop publishes the reference Nav2 configuration, the elevation-model costmap and a route-finding result worth studying: the best software in the corpus and 32^nd overall in 2026.
• Missouri S&T and Monash carry the two winning patterns: a bespoke protocol and a full ROS 2 stack, both with a simulator built from the flight code.
• Michigan MRover shows the custom-navigation route inside ROS 2, without a navigation framework.
• Compute, sensors and perception owns the camera, GNSS and compute choices this page consumes.
• Interfaces and couplings works the video-budget and mast-height chains with numbers.
• Autonomy: astronaut assistance and Autonomy: route finding map these requirements onto the two sub-missions.
